Key Features
Overview

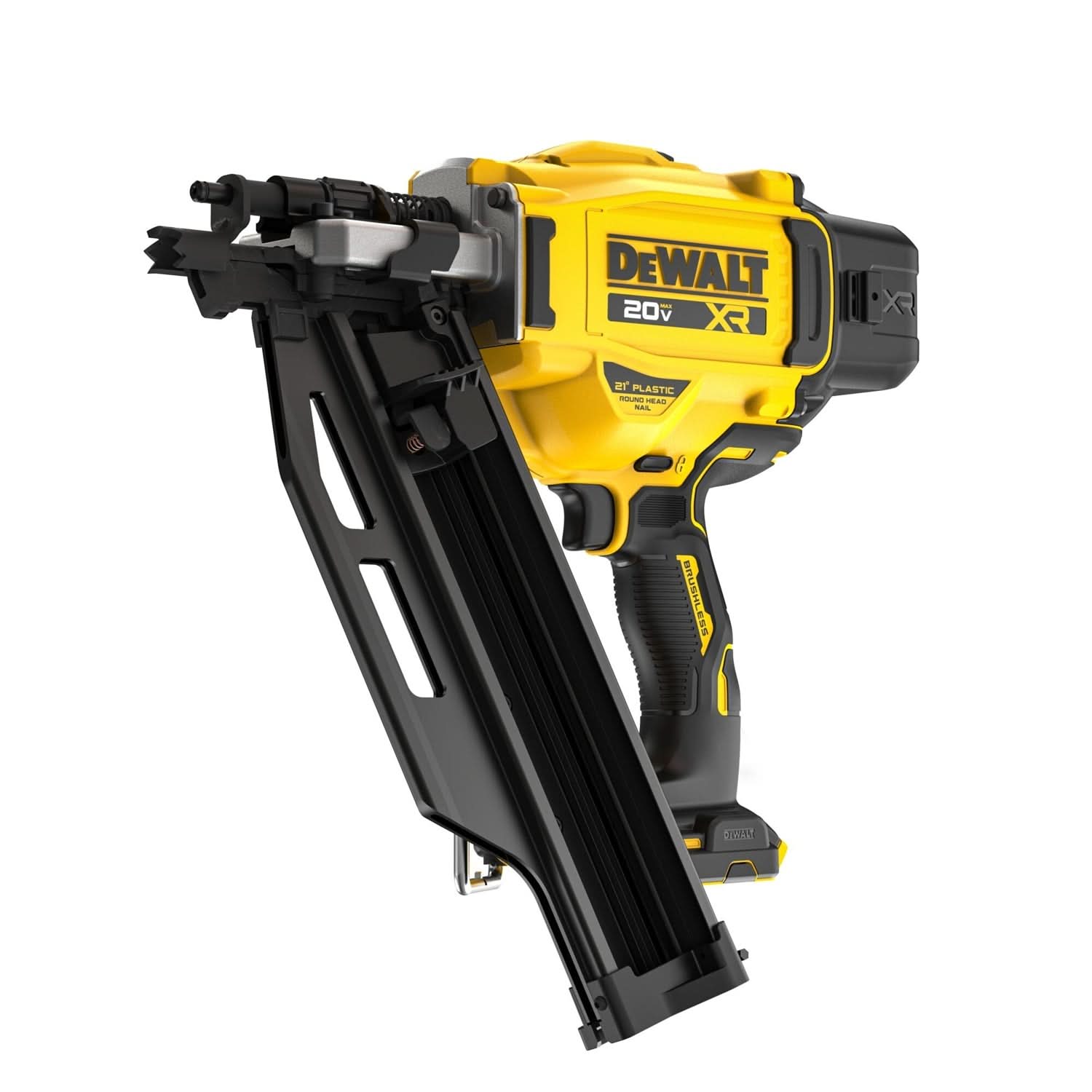

The DEWALT DCN920B 20V MAX XR Brushless Cordless 21 Degree Plastic Collated Framing Nailer is a cordless framing nailer built for structural wood fastening without a compressor or hose. This is a framing nailer designed for wall framing, subfloor installation, and general structural fastening. Model Number: DCN920B. If you already run DEWALT 20V MAX batteries and want framing speed without pneumatic setup, this tool makes a strong case fast.
What matters most on the job is that this nailer is built to keep moving. DEWALT’s active flywheel stays active for 6 seconds after the trigger is released, which helps minimize downtime between shots in rapid sequential mode. In plain terms, the tool is ready when you go back in for the next nail instead of making you wait through extra ramp-up. DEWALT also rates it for up to 530 square feet of subflooring per charge and up to 100 feet of wall framing per charge when used with a 5.0Ah battery, so it is clearly aimed at real framing work rather than punch-list duty.
The design is jobsite-focused. The tool weighs about 8.65 lbs tool only, which matters when you are working overhead, reaching into bays, or carrying it through a full day of framing. The high-strength magnesium magazine is there for durability, not just spec-sheet padding. DEWALT also redesigned the nose specifically for toe-nailing applications, giving you better alignment and grip when you need to drive at aggressive angles. That is one of those features that sounds small until you are actually trying to set nails cleanly in a tight stud bay.
This DEWALT framing nailer is also set up for practical ownership, not just first-day performance. Field serviceable springs and driver blade can help limit maintenance delays, which is a big deal on a production crew where downtime costs more than parts. It is also Chip-Ready for the TOOL CONNECT system, so users managing multiple cordless tools can add tracking capability with a separate chip. That will matter more to contractors running several crews than to the one-man remodeler, but it is useful support for anyone trying to keep expensive tools from wandering off.
As a bare tool, the DEWALT DCN920B 20V MAX XR Brushless Cordless 21 Degree Plastic Collated Framing Nailer is meant for buyers already on the DEWALT 20V MAX platform. Battery and charger are sold separately. It is also compatible with the optional DZN920 extended magazine if you want capacity for two strips of nails. For framing carpenters, remodelers, deck builders, and general contractors who want to ditch hoses without stepping down to a light-duty nailer, this is the kind of cordless nail gun that actually belongs on the jobsite.
Frame Without the Compressor
If you are used to pneumatic framing tools, the biggest upgrade here is not having to drag a compressor and hose from room to room. The DEWALT DCN920B is built for framing tasks that need mobility and quick setup.
- Battery-powered cordless operation eliminates hoses and compressors
- DEWALT states pneumatic framing users can save setup and cleanup time by switching to cordless
Built to Keep Up Between Shots
The active flywheel is the feature that separates a serious cordless framing nailer from one that feels slow. It helps reduce wait time between nails so the tool feels more natural in repetitive framing work.
- Flywheel stays active for 6 seconds after the trigger is released
- DEWALT rates it for up to 72% more sub-flush driving than the previous generation
Jobsite Details That Actually Matter
DEWALT paid attention to the parts that take abuse. The magnesium magazine, toe-nailing nose, and field serviceable wear components show this tool was designed for regular framing work, not occasional use.
- High-strength magnesium magazine is built for durability
- Field serviceable springs and driver blade help reduce maintenance delays
What’s in the Box
- (1) Nailer
- (1) Belt Hook and Screw
- (1) No Mar Tip
- (1) Manual
- (1) Hex Wrench
Battery and charger are sold separately.
Key Specifications
 Product Type | Framing Nailer |
|---|---|
 Voltage (V) | 20 V |
|
Power Source | Battery |
 Weight (lbs) | 8.65 lbs |
 Nail Angle | 21 Degree |
|
Nail Capacity | Up to 3-1/2 in. |
 Magazine Material | High-strength magnesium |
 Made In | Mexico |
Compatibility
Built For
Pro Tip
If you do a lot of toe-nailing, let the redesigned nose bite into the material before you commit to the shot. That gives the DCN920B a more planted feel at aggressive angles and helps you take advantage of the quicker follow-up shots from the active flywheel.
Warranty & Support
Tool Nut’s Take
DEWALT DCN920B 20V MAX XR Brushless Cordless 21 Degree Plastic Collated Framing Nailer Gets the Big Stuff Right
This is the kind of cordless framing nailer that makes sense for pros who are done messing with hoses but still need real framing performance.
- Who it’s for: Framing carpenters, remodelers, deck builders, and contractors already invested in DEWALT 20V MAX batteries.
- Why it stands out: Active flywheel response, a toe-nailing-focused nose design, durable magnesium magazine, and up to 3-1/2 inch nail capacity give it the features that matter on actual framing work.
- Worth knowing: It is a bare tool, so plan on buying the battery, charger, TOOL CONNECT chip, or extended magazine separately if you need them.
Common Questions
- Is this a cordless or pneumatic framing nailer? It is a cordless battery-powered framing nailer. It does not require a compressor or hose.
- Does the DEWALT DCN920B include a battery and charger? No. This is a tool-only version, so the battery and charger are sold separately.
- What is the maximum nail length capacity? DEWALT lists nail capacity up to 3-1/2 inches.
- Can it use an extended magazine? Yes. It is compatible with the optional DZN920 extended magazine, sold separately.
- Is it ready for TOOL CONNECT tracking? Yes. The tool is Chip-Ready, and the tracking chip is sold separately.
