Key Features
Overview

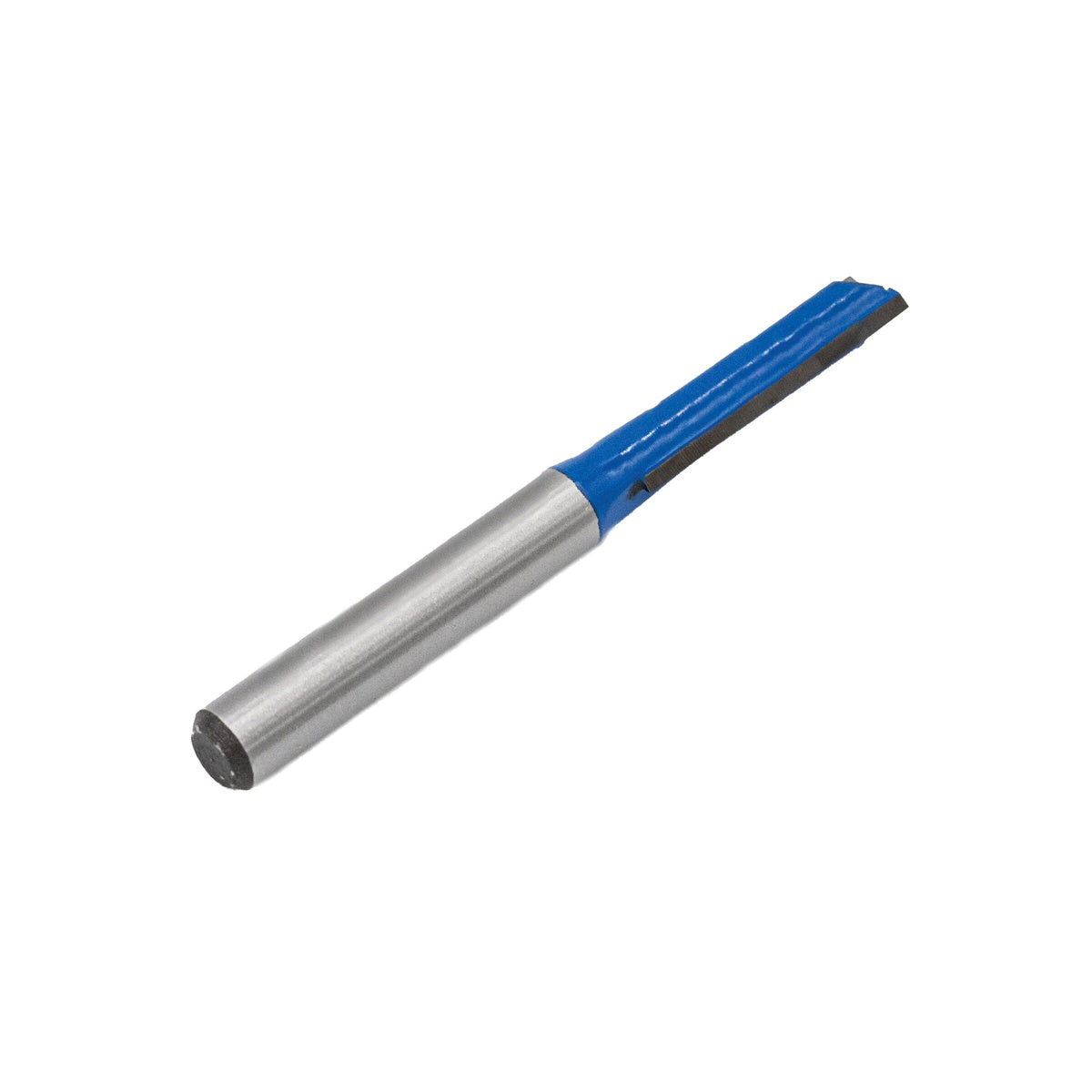

The Kreg KRTCG150 1/4-in. Diameter 1/4-in. Shank Straight Bit is a carbide-tipped router bit for cutting straight channels and edges in wood-based materials. This is a straight router bit designed for grooves, dadoes, mortises, and edge-routing. Model Number: KRTCG150. If you need one bit that covers a lot of everyday router work without getting fancy, this is the basic cutter most woodworkers reach for first.
The 1/4 inch cutting diameter is small enough for controlled, precise material removal, which matters when you are cutting narrow grooves, cleaning out dadoes, or routing edges where you do not want the bit to feel oversized. Paired with a 1/4 inch shank, it is aimed at compact routers and lighter-duty setups where balance and control matter just as much as cut quality.
Kreg builds this bit with premium carbide cutting tips, and that is the feature that really matters here. Carbide holds an edge longer than basic high-speed steel, especially when you are working through plywood glue lines, MDF, or repeated passes in hardwood. In real use, that means cleaner cuts, less burning from a dull edge, and more consistent results before it is time to replace the bit.
This bit is rated for up to 24,000 RPM, so it fits the operating range of many trim routers and compact router setups. That gives you flexibility whether you are making quick edge-routing passes by hand or doing more controlled work in a router table. It is not trying to be a huge stock-removal bit. It is made for accurate, repeatable straight cuts where control and finish quality matter.
Application-wise, this Kreg straight bit is a good fit for plywood, hardwood, and MDF. That covers a lot of common cabinet parts, shop jigs, shelving, trim details, and template-based routing tasks. If you are building dados for shelves, cutting shallow grooves for panels, or routing mortises with a compact setup, the size and profile make sense.
Compatibility is another strong point. Kreg specifically calls out use with the Kreg Trim Router Circle Guide, so it fits neatly into that system for guided routing work. It also works with router tables or handheld routers that accept a 1/4 inch shank bit. For users already in the Kreg routing lineup, that makes this a straightforward add-on instead of a one-off accessory.
Who should buy it? Woodworkers, cabinet installers, trim carpenters, and serious DIY users who want a dependable small straight bit for general-purpose routing. If your work leans toward joinery, grooves, dadoes, or controlled edge work in sheet goods and solid wood, this is the kind of bit that earns a permanent spot in the drawer because it handles the everyday jobs without drama.
Precise Grooves and Dadoes Without Overcutting
A small straight bit is one of the most useful cutters in a router kit because it handles joinery and cleanup work that larger profiles cannot do cleanly. This size gives you better control when accuracy matters more than brute-force stock removal.
- 1/4 inch cutting diameter for narrow grooves, dadoes, and mortises
- Straight cutting profile for clean channels and controlled edge-routing
- Works well on plywood, hardwood, and MDF
Built for Compact Router Work
The 1/4 inch shank makes this bit an easy match for many trim routers and other routers that accept 1/4 inch accessories. That is a practical choice for lighter routing tasks where maneuverability and feel matter.
- 1/4 inch shank sized for compatible compact routers
- Usable in router tables or handheld routers
- Rated for speeds up to 24,000 RPM
Key Specifications
| Bit Type | Straight router bit |
|---|---|
| Cutting Diameter | 1/4 in. |
| Shank Diameter | 1/4 in. |
| Maximum Speed | 24,000 RPM |
| Cutter Material | Carbide-tipped |
| Recommended Materials | Plywood, hardwood, and MDF |
Compatibility
Built For
Pro Tip
When you are cutting dadoes or mortises with a 1/4 inch straight bit, take multiple shallow passes instead of trying to hog it all out at once. You will get a cleaner wall, better chip clearing, and noticeably less strain on a compact router.
Tool Nut’s Take
Why the Kreg KRTCG150 1/4-in. Diameter 1/4-in. Shank Straight Bit Belongs in the Drawer
This is the kind of straight bit that covers a lot of real shop work without costing much or taking up space.
- Who it’s for: Woodworkers, cabinet builders, trim carpenters, and DIY users running a compact router for grooves, dadoes, mortises, and edge work.
- Why it stands out: The 1/4 inch diameter is useful, the carbide tips are the right call for longer life, and the compatibility with the Kreg Trim Router Circle Guide makes it more than just a generic replacement bit.
- Worth knowing: This is a small, precise cutter, not a big material-hogging bit. Use it where control and clean routing matter, and it will make a lot more sense than jumping straight to a larger profile.
Common Questions
- What kind of bit is this? It is a straight router bit designed for grooves, dadoes, mortises, and edge-routing applications.
- What routers does it fit? It uses a 1/4 inch shank, so it fits routers that accept 1/4 inch shank bits.
- What materials is it intended to cut? Kreg lists plywood, hardwood, and MDF as recommended materials.
- Can it be used with a router table? Yes. Kreg states it works with router tables or handheld routers.
- Is it compatible with the Kreg Trim Router Circle Guide? Yes. Kreg specifically lists compatibility with the Kreg Trim Router Circle Guide.
