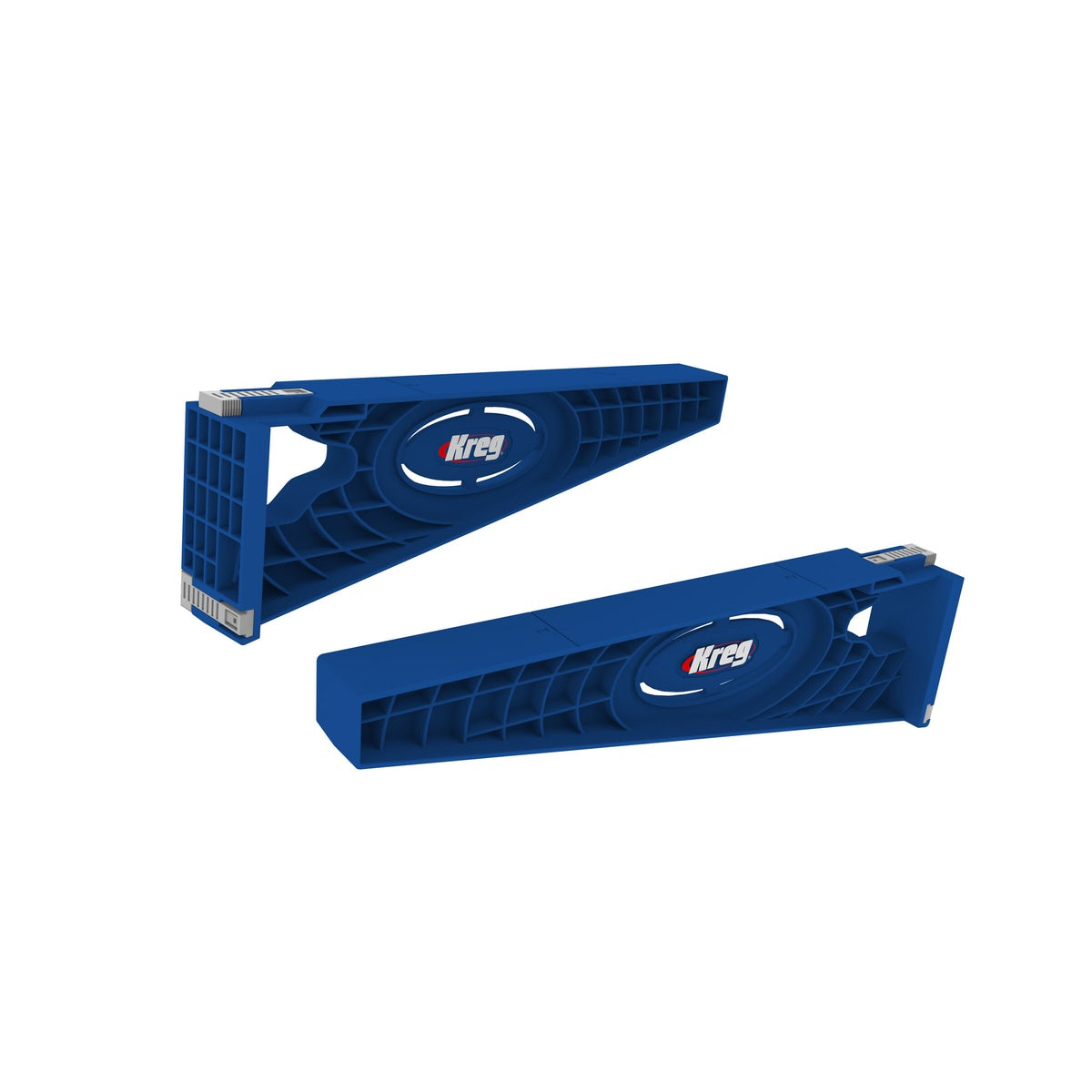

The Kreg Drawer Slide Jig is a cabinet installation jig built to make drawer slide installation faster, straighter, and more repeatable. This is a drawer slide jig designed for positioning and supporting drawer slides during cabinet and drawer box installation. Model Number: KHI-SLIDE. If you build cabinets, update kitchen storage, or install drawers in shop furniture, this jig helps take the guesswork out of getting slides aligned so drawers fit properly and run smoothly.
The big win here is accuracy without constant measuring and marking. Built-in indexing tabs help you register the jig for consistent slide placement, which matters because even small alignment errors show up right away once the drawer starts moving. Instead of juggling a slide, a drill, and a tape measure at the same time, the jig holds the work where you need it so you can focus on fastening it correctly.
Kreg also made the setup versatile. The jig is reversible, so it can be used to mount slides to the cabinet and then support the drawer box while you attach the mating hardware. That means you are not buying one tool for one half of the job and then improvising the rest. For anyone doing multiple drawers, repeatability is the difference between a clean install and a long afternoon of adjustments.
The construction is straightforward and practical. The body is made from lightweight polypropylene, so it is easy to move around from cabinet to cabinet without feeling flimsy in the hand. That lighter build matters when you are working inside cases, leaning into a cabinet opening, or making repeated setups during a full kitchen or built-in project.
This jig is also broad in its real-world use. Source data states it works with ball-bearing, epoxy-coated, and undermount slides, and it is suitable for cabinets, cases, and similar storage builds. That makes it useful for remodeling work, custom cabinetry, shop fixtures, and furniture-style projects where smooth drawer action depends on clean hardware placement.
Capacity matters on a jig like this, and the listed stock range of 1/2 in. to 1-1/2 in. covers many common drawer box and cabinet material thicknesses. Its compact footprint, with a listed length of 5.75 in. and width of 3 in., keeps it manageable in tighter cabinet interiors while still giving enough support to register and hold the slide as you work.
If you are a cabinet installer, trim carpenter, remodeler, woodworker, or serious DIYer who wants cleaner drawer installs with fewer do-overs, this is the kind of jig that earns its keep quickly. It is not flashy. It just solves a frustrating layout problem and helps produce drawer installs that look right and operate the way they should.
Get Repeatable Drawer Slide Alignment
Drawer slides only work well when both sides land in the right spot. The built-in indexing feature helps you register the jig consistently so slide placement stays level and repeatable from one drawer opening to the next.
- Built-in indexing tabs reduce measuring and marking
- Helps position slides accurately for smoother drawer operation
- Useful for cabinet builds, casework, and retrofit drawer projects
One Jig for Cabinet and Drawer Work
The reversible design is what makes this jig practical on real jobs. You can use it to support the slide inside the cabinet, then reverse the setup to help position the drawer box side of the hardware without switching to a different fixture.
- Reversible for mounting slides to the cabinet and drawer box
- Holds slides in place while you drill or drive fasteners
- Lightweight polypropylene keeps handling easy during repeated setups
Key Specifications
| Material | Polypropylene |
|---|---|
| Stock Thickness Range | 1/2 in. to 1-1/2 in. |
| Product Length | 5.75 in. |
| Product Width | 3 in. |
| Weight | 1.35 lbs |
| Product Type | Drawer Slide Jig |
| Use | Drawer slide installation and alignment |
| GTIN | 0647096806644 |
Compatibility
Built For
Pro Tip
When you are installing multiple drawers, set your reveal and height reference first, then keep both jig positions consistent from opening to opening. That is where this jig saves the most time, because repeatable setup is what keeps a stack of drawers looking even.
Warranty & Support
Tool Nut’s Take
Why the Kreg Drawer Slide Jig earns a spot in the cabinet install kit
The Kreg Drawer Slide Jig is one of those simple setup tools that saves more frustration than its size suggests.
- Who it’s for: Cabinet makers, remodelers, trim carpenters, and DIY woodworkers installing enough drawers that accuracy and speed both matter.
- Why it stands out: The indexing tabs and reversible design solve the two annoying parts of drawer hardware work, getting the slide height right and holding everything steady while you fasten it.
- Worth knowing: This is a positioning and support jig, not a shortcut around layout entirely. If your cabinet openings are off, the jig will help you repeat that setup accurately, so start with a solid reference line.
Common Questions
- What does the Kreg Drawer Slide Jig do? It helps position and support drawer slides during installation so slides mount straighter and more consistently.
- Can it be used on both the cabinet and the drawer box? Yes. Source data states the jig is reversible for mounting slides to the cabinet and the drawer box.
- What kinds of drawer slides does it work with? Source data says it works with ball-bearing, epoxy-coated, and undermount drawer slides.
- What stock thickness does it support? The listed stock size range is 1/2 in. minimum to 1-1/2 in. maximum.
