Key Features
Overview

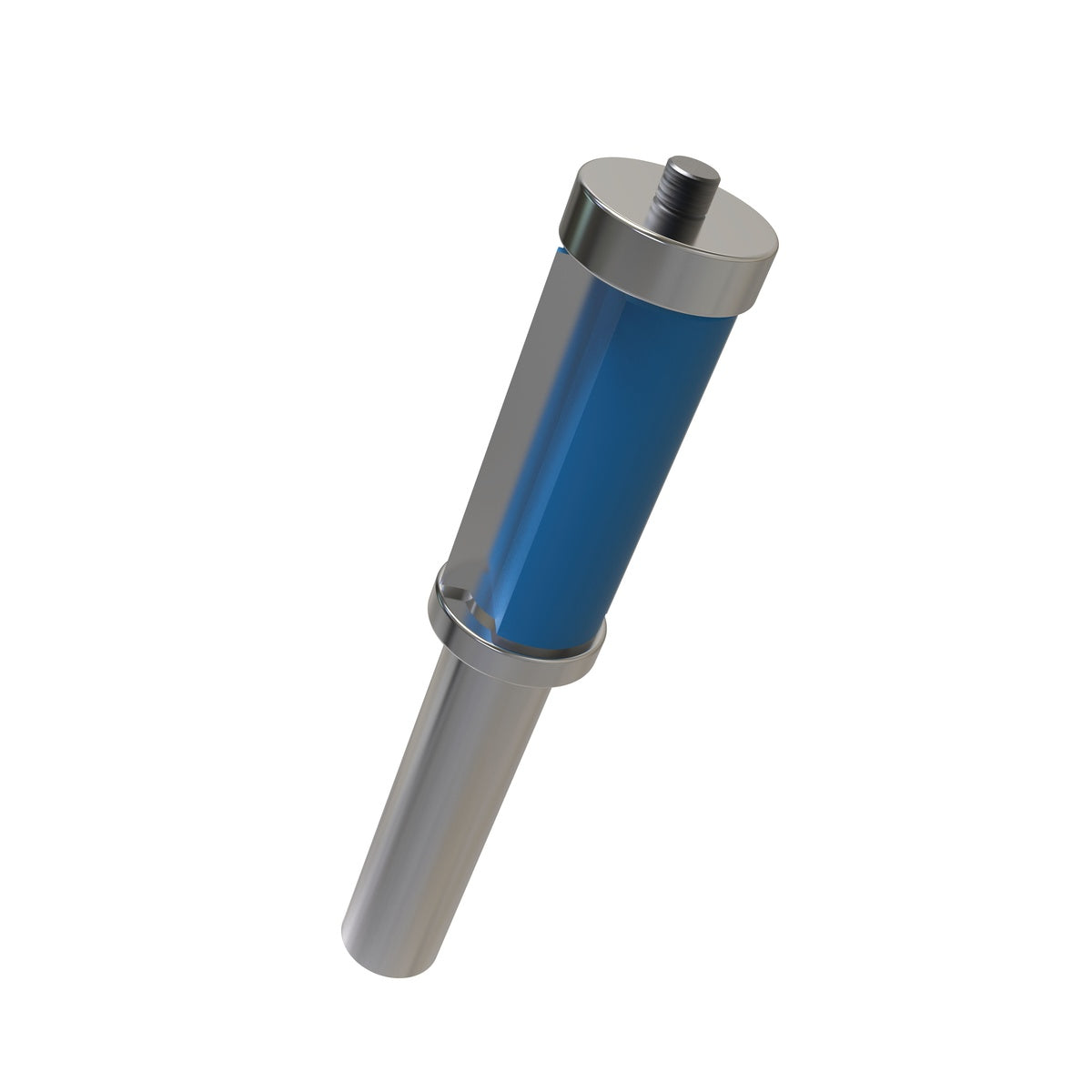

The Kreg PRS500 Flush-Trim Bit 1/2″ Shank is a bearing-guided router bit made for clean trimming and template-following work. This is a flush-trim bit designed for trimming wood, laminate counters, and pattern work with compatible routers and the Kreg Corner Routing Guide Set. Model Number: PRS500. If you want a bit that is set up for accurate corner profiling instead of general-purpose guessing, this is the one Kreg built for that job.
The big story here is control. The PRS500 uses dual bearings mounted at the top and bottom, which gives you more setup flexibility depending on whether the work is being done on a router table, with a handheld router, or with a trim router. That matters because the bearing is what follows the guide surface and keeps the cutter from wandering. When the bearing tracks right, the edge comes out right.
Kreg also gives this router bit carbide-tipped cutter blades, which is what you want if you are cutting more than occasional softwood. Carbide holds an edge longer and stays more consistent across plywood, hardwoods, softwoods, and composition materials. For cabinet parts, laminate edge trimming, and template routing, that means cleaner results and less fighting tearout from a tired cutting edge.
The 1/2 inch shank is another practical advantage. A larger shank gives the bit a more planted feel in the router compared with smaller-shank alternatives, especially when you are trying to keep a long flush-trim cut steady. Kreg rates the PRS500 for up to 24,000 RPM, so it is built to run in the speed range most users will see on compact and full-size routers set up for trim work.
Capacity is also worth calling out. This bit handles material up to 1-3/8 inches thick, which covers a lot of common woodworking and laminate trimming tasks without needing to switch to a different bit. If you are pattern-routing parts or cleaning up proud edges after glue-up, that kind of capacity makes the tool more useful across different shop jobs.
Where this bit separates itself is application-specific design. It is not trying to be every router bit for every job. It is made to work with the Kreg Corner Routing Guide Set, and that focused design is exactly why it makes sense for users who want repeatable corner profiles and controlled trimming. If you already work in the Kreg setup, the fit is straightforward and the use case is clear.
The Kreg PRS500 Flush-Trim Bit 1/2″ Shank is a smart pick for woodworkers, cabinet builders, finish carpenters, and serious DIY users doing laminate or template-guided routing. If your work involves edge trimming, pattern routing, or guided corner work, this bit gives you the right combination of stability, bearing guidance, and carbide durability. If you need a general-purpose bit for random routing tasks, there are broader options out there. If you need clean flush trimming with guide support, this one is right in its lane.
Stay Accurate in Handheld or Table Routing
The dual-bearing layout gives this bit more than one way to work. That helps when your setup changes from bench routing to handheld trimming and you still want the cut to follow the guide cleanly.
- Top and bottom bearings support use in router tables, handheld routers, and trim routers
- Bearing-guided trimming helps produce uniform edges on templates and profiles
Cut Cleaner and Hold an Edge Longer
Carbide-tipped cutters are the right call for trim work because the edge stays usable longer and keeps results more consistent across different sheet goods and solid stock.
- Carbide-tipped cutter blades are built for plywood, hardwood, softwood, laminate, and composition materials
- Two flutes balance cutting action with a smooth trimmed finish
Kreg PRS500 Flush-Trim Bit 1/2″ Shank for Guided Trim Work
Kreg PRS500 Flush-Trim Bit 1/2″ Shank for Guided Trim Work
This bit is sized and rated for real trim-routing work, not just light cleanup passes. The 1/2 inch shank and 24,000 max RPM rating make it a solid choice for controlled, repeatable routing with the right router setup.
- 1/2 inch shank for a more stable fit in compatible routers
- 1-3/8 inch material thickness capacity covers a wide range of flush-trimming tasks
What’s in the Box
- (1) Kreg PRS500 Flush-Trim Bit 1/2″ Shank
Key Specifications
| Shank Diameter | 1/2 in |
|---|---|
| Material Thickness Capacity | 1-3/8 in |
| Maximum Speed | 24,000 RPM |
| Number of Flutes | 2 |
| Overall Length | 4.1 in |
| Shank Length | 1.875 in |
| Weight | 0.25 lbs |
| Construction | Steel body with carbide-tipped cutter blades |
Compatibility
Built For
Pro Tip
If you are switching between handheld routing and table work, the dual-bearing setup gives you options without changing bits. That is handy when you want the guide surface exactly where you need it to keep a flush-trim pass predictable.
Warranty & Support
Tool Nut’s Take
A Purpose-Built Bit That Actually Knows Its Job
The Kreg PRS500 Flush-Trim Bit 1/2″ Shank makes sense for anyone who wants guided, repeatable trim work instead of trying to fake precision with the wrong bit.
- Who it’s for: Woodworkers, cabinet guys, finish carpenters, and serious DIY users doing template routing, laminate trimming, or corner guide work.
- Why it stands out: The dual bearings are the real value here because they give you setup flexibility across router tables and handheld routing, and the carbide cutters are built for actual shop use.
- Worth knowing: This is a focused accessory, not a catch-all router bit. If you are buying into the Kreg Corner Routing Guide setup, it is a strong fit. If not, make sure a 1/2 inch shank flush-trim bit is what your router and workflow call for.
Common Questions
- What is this bit designed to do? It is a flush-trim router bit for trimming wood, laminate counters, and pattern work while following a guide surface with its bearings.
- What routers can it be used with? The source data lists compatibility with router tables, handheld routers, and trim routers, as long as the router accepts a 1/2 inch shank.
- What is the maximum rated speed? Kreg rates the PRS500 for a maximum of 24,000 RPM.
- How thick of a workpiece can it handle? The listed material thickness capacity is 1-3/8 inches.
