Key Features
Overview

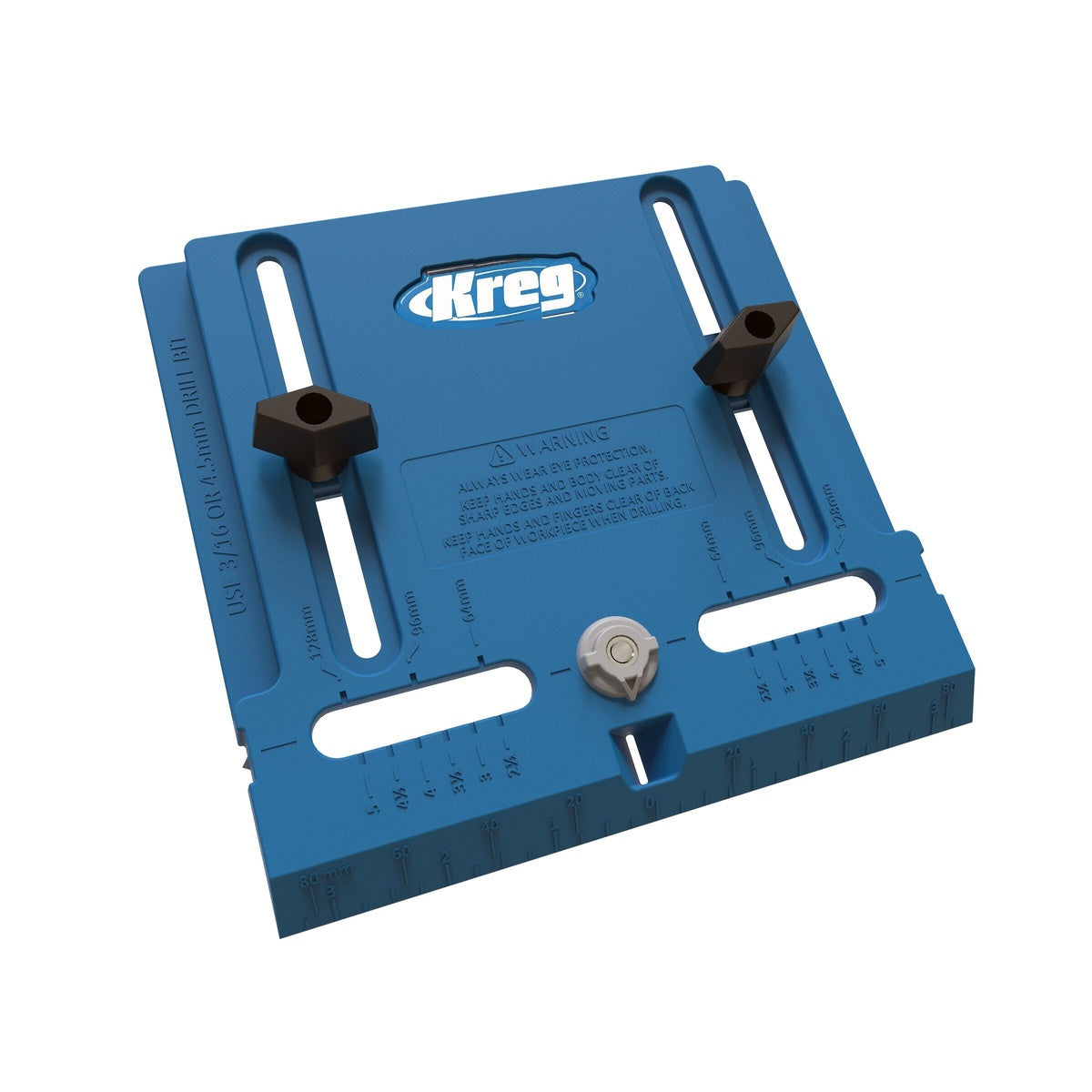

The Kreg KHI-PULL Cabinet Hardware Jig is built to help you install cabinet knobs and pulls with consistent spacing and straight holes. This is a cabinet hardware jig designed for drilling accurate mounting holes for cabinet knobs, door handles, and drawer pulls. Model Number: KHI-PULL. If you are updating a kitchen, building new cabinetry, or knocking out a whole room of drawer hardware, this jig removes the usual trial-and-error that comes with measuring every piece by hand.
The big selling point here is repeatability. Adjustable guides handle accurate hole placement, while the built-in measuring scales let you set location once and keep moving. That is the difference between a one-door project and a twenty-door project. Instead of laying out every centerline with a tape and hoping your marks stay consistent, you set the jig to your hardware spacing and drill with more confidence.
Kreg uses hardened-steel drill guides so the bit tracks straight where it is supposed to. That matters because cabinet hardware mistakes are easy to see and hard to hide. Crooked or wandering holes can ruin a painted door or finished drawer front fast. The hardened guides are there to keep the process controlled, especially when you are drilling multiple pieces back to back.
The body is made from durable polymer, which keeps the jig strong without making it heavy or awkward to handle. That lighter build is useful when you are moving from drawer to drawer, working on installed cabinets, or reaching across larger doors. The adjustable edge guide also helps position the jig quickly against the workpiece, so setup stays simple whether you are installing a single knob or lining up multi-hole pulls.
Another practical detail is the built-in imperial and metric scales. If you work from mixed hardware specs or swap between shop work and installed work, being able to read both systems directly on the jig saves time. It also makes the tool more approachable for beginners, since you are not translating measurements in your head before every hole.
This jig is versatile enough for single-hole knobs and multi-hole pulls, which makes it useful for kitchen cabinets, bathroom vanities, laundry rooms, mudroom built-ins, and furniture projects. It is a good fit for remodelers, finish carpenters, cabinet installers, woodworkers, and serious DIY users who care more about clean results than doing things the slow way. All you need in addition to the jig is a drill and a 3/16 in. (5 mm) drill bit, which is required but not included.
Set Hardware Once and Repeat It
When you are installing several handles, the goal is not just drilling a hole. The goal is drilling the same hole in the same spot every time. That is where this cabinet hardware jig earns its keep.
- Adjustable drill guides help place holes accurately for cabinet knobs and pulls
- Built-in measuring scales support repeatable layout without constant remarking
- Works for both single-hole knobs and multi-hole pull hardware
Light in the Hand, Tough Where It Counts
This is the kind of jig that makes sense for occasional upgrades and repeated shop use. The body stays easy to handle, while the drill-guiding surfaces are built to take the wear.
- Durable polymer construction keeps weight down for easier positioning
- Hardened-steel drill guides are built for straight, controlled drilling
- Adjustable edge guide helps register the jig consistently from the edge of doors and drawers
What’s in the Box
- (1) Jig Base
- (1) Edge Guide
- (2) Drill Guides with knurled nuts
- (2) Non-slip Pads
- (2) T-knobs and bolts
- (1) Owner’s Manual with complete instructions
Drill and 3/16 in. (5 mm) drill bit are required and not included.
Key Specifications
| Tool Type | Cabinet hardware jig |
|---|---|
| Primary Use | Cabinet knob and pull installation |
| Drill Bit Requirement | 3/16 in. (5 mm) |
| Material | Durable polymer and hardened steel |
| Measurement System | Imperial and metric scales |
| Weight (lbs) | 1.8 lbs |
| Size | 8.5 x 7.8 x 1.7 in. |
| Made In | United States |
Compatibility
Built For
Pro Tip
If you are installing the same pull across a full run of drawers, set the jig once using the actual hardware as your reference, then leave the drill guides locked and move only by the edge guide. That cuts down setup time and helps keep every drawer front matching from left to right.
Tool Nut’s Take
Why the Kreg KHI-PULL Cabinet Hardware Jig Makes Sense
This is a smart buy for anyone who wants cabinet hardware to look clean and intentional without wasting time laying out every hole by hand.
- Who it’s for: Cabinet installers, finish carpenters, woodworkers, remodelers, and DIY users replacing a lot of knobs or pulls at once.
- Why it stands out: The adjustable guides, edge registration, and hardened-steel drill guides give you the kind of repeatability that usually saves a project after the first few pieces.
- Worth knowing: You need to bring your own 3/16 in. drill bit, so this is not a complete ready-to-drill kit right out of the box.
Common Questions
- What is this jig used for? It is used for drilling accurate, repeatable holes for cabinet knobs and pulls on doors and drawer fronts.
- Can it handle both knobs and pulls? Yes. It is designed for single-hole knobs and multi-hole pull hardware.
- Does it include a drill bit? No. A 3/16 in. (5 mm) drill bit is required, but it is not included.
- Is it suitable for beginners? Yes. The jig is designed to be intuitive for beginners while still being robust enough for professional use.
