Key Features
Overview

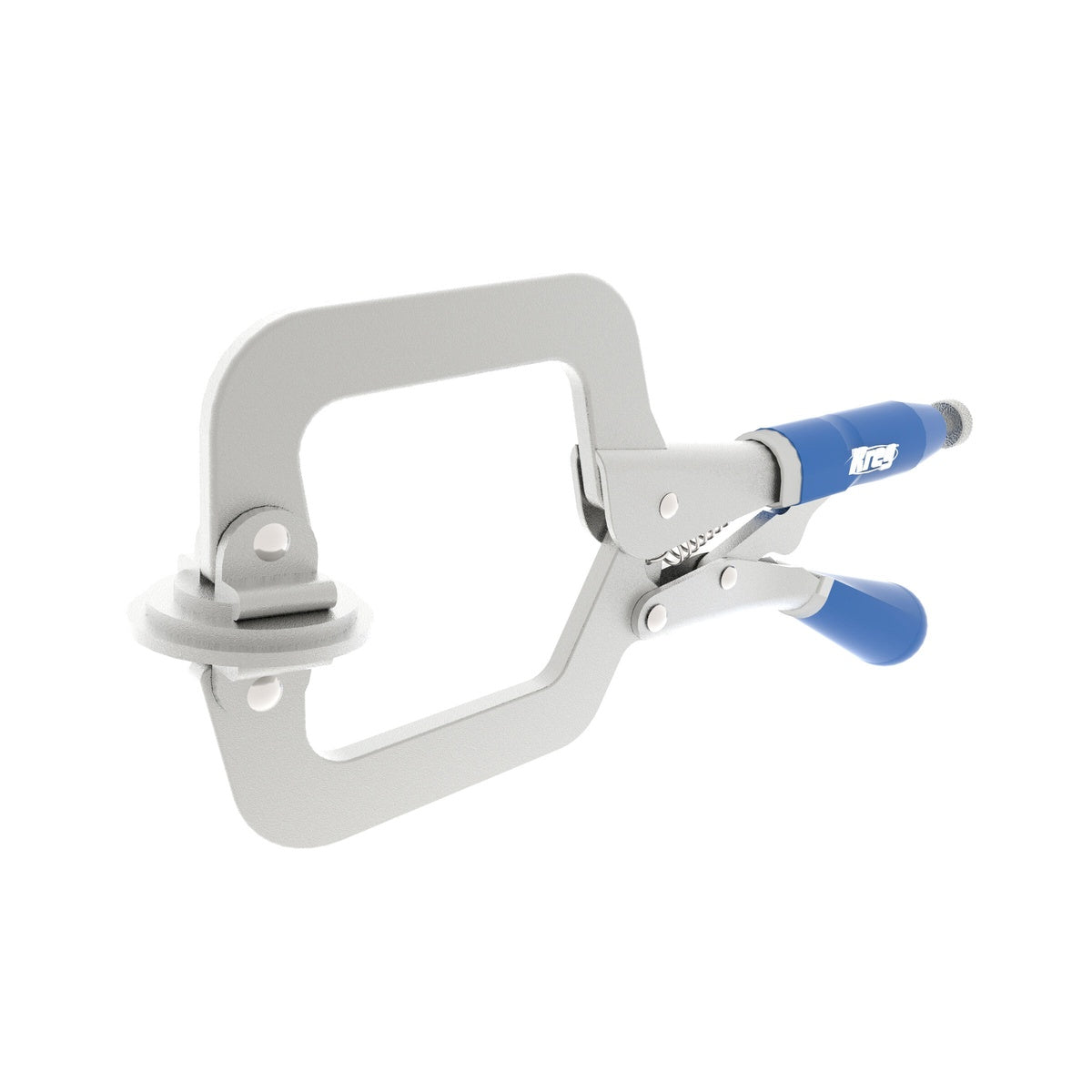

The Kreg Tool KHC-PREMIUM Classic 3 Inch Face Clamp is a locking face clamp made for pocket-hole joinery, face-frame work, and general woodworking assembly. This is a face clamp designed for holding two workpieces flush during assembly. Model Number: KHC-PREMIUM. If you build cabinets, install face frames, or do repeat pocket-screw fastening, this clamp solves a common problem fast: parts slipping out of alignment right when you start driving screws.
What makes this clamp useful is not just that it locks down, but how it applies pressure. The large clamp pads spread force more evenly across the workpieces, which helps hold surfaces flush without beating up the material. In pocket-hole assembly, that matters because one board can easily creep proud of the other as the screw pulls the joint tight. The extra-large clamp face is intended to sit on the show side of the joint, helping you keep that visible face lined up cleanly.
The 3 inch reach and ability to clamp materials up to 2-3/4 inches thick give this woodworking clamp more range than smaller face clamps. That extra capacity makes it a better fit for the majority of pocket-screw applications, especially when you’re working with thicker stock, wider face frames, or assemblies where a little more throat depth helps you get the clamp where it needs to be.
Kreg keeps the setup straightforward here. A simple adjustment screw lets you match clamp pressure to material thickness, so you can move between workpieces without fighting the tool. The padded handles are there for a reason too. On repetitive assembly jobs, comfort matters, especially when you’re opening and closing a clamp over and over at the bench.
This clamp is also part of the larger Kreg joinery system. It is compatible with the Kreg Pocket-Hole Jig R3 Portable Clamp Adapter and 300-Series Pocket-Hole Jigs, which makes it a practical choice if you’re already working in that platform. Instead of using a generic clamp and hoping everything stays put, this one is built around how Kreg joinery actually gets used in the shop.
Who should buy it? Anyone doing cabinet work, furniture assembly, face frames, shop projects, or repair work where keeping surfaces flush matters more than raw clamping force. For serious DIYers, it takes frustration out of pocket-hole work. For pros and shop users, it is the kind of dedicated assembly clamp that saves time because it does one job really well.
Keep Pocket-Hole Joints Flush
This clamp is built for the part of assembly where accuracy matters most. It keeps mating parts even while you drive the pocket screw, so you spend less time fixing a proud edge after the joint is already together.
- Designed to help create a flush joint during pocket-hole assembly
- Large clamp pads distribute pressure more evenly and reduce marring
More Reach for Real Shop Work
The 3 inch reach gives you more flexibility than a smaller clamp when you’re working on face frames, cabinet parts, and thicker stock. That makes it a better all-around assembly clamp if you want one that covers most common Kreg joinery tasks.
- 3 inch reach for better access across wider workpieces
- Clamps materials up to 2-3/4 inches thick
Easy to Set, Easy to Repeat
On a single clamp-up the handles might seem like a small detail. After a run of repetitive assemblies, they are not. The padded grips and simple screw adjustment make this clamp quicker to dial in and less tiring to use through a full project.
- Ergonomic padded grips improve comfort during repeated use
- Screw adjustment matches the clamp to changing material thickness
Key Specifications
| Tool Type | Locking face clamp |
|---|---|
| Reach | 3 in. (76 mm) |
| Maximum Material Thickness | 2-3/4 in. (70 mm) |
| Adjustment Type | Screw adjustment |
| Grip Type | Ergonomic padded grips |
| Primary Use | Holding workpieces flush during pocket-hole assembly |
Compatibility
Built For
Pro Tip
Set the adjustment screw to your material thickness before you start the assembly run. Once the clamp is dialed in, you can move from joint to joint faster and keep the show face flush without over-clamping the workpiece.
Warranty & Support
Tool Nut’s Take
Why the Kreg Tool KHC-PREMIUM Classic 3 Inch Face Clamp Earns Bench Space
This is the kind of dedicated assembly clamp that makes pocket-hole work cleaner, faster, and a lot less annoying.
- Who it’s for: Woodworkers, cabinet builders, and serious DIYers doing face frames, furniture parts, or repeat pocket-screw assembly.
- Why it stands out: The 3 inch reach, large clamp pads, and Kreg-specific compatibility make it more useful than a generic locking clamp for keeping joints flush.
- Worth knowing: This is a single-purpose clamp in the best way. If your main goal is accurate pocket-hole assembly, that specialization is exactly why it works so well.
Common Questions
- What is this clamp mainly designed for? It is designed to hold workpieces flush during pocket-hole assembly and other woodworking clamp-up tasks.
- How much material can it clamp? It has a 3 inch reach and clamps materials up to 2-3/4 inches thick.
- Does it work with Kreg jigs? Yes. It is compatible with the Kreg Pocket-Hole Jig R3 Portable Clamp Adapter and Kreg 300-Series Pocket-Hole Jigs.
- Will it help prevent marring? The large clamp pads are designed to distribute clamping force evenly, which helps reduce surface marking while holding parts flush.
