Key Features
Overview

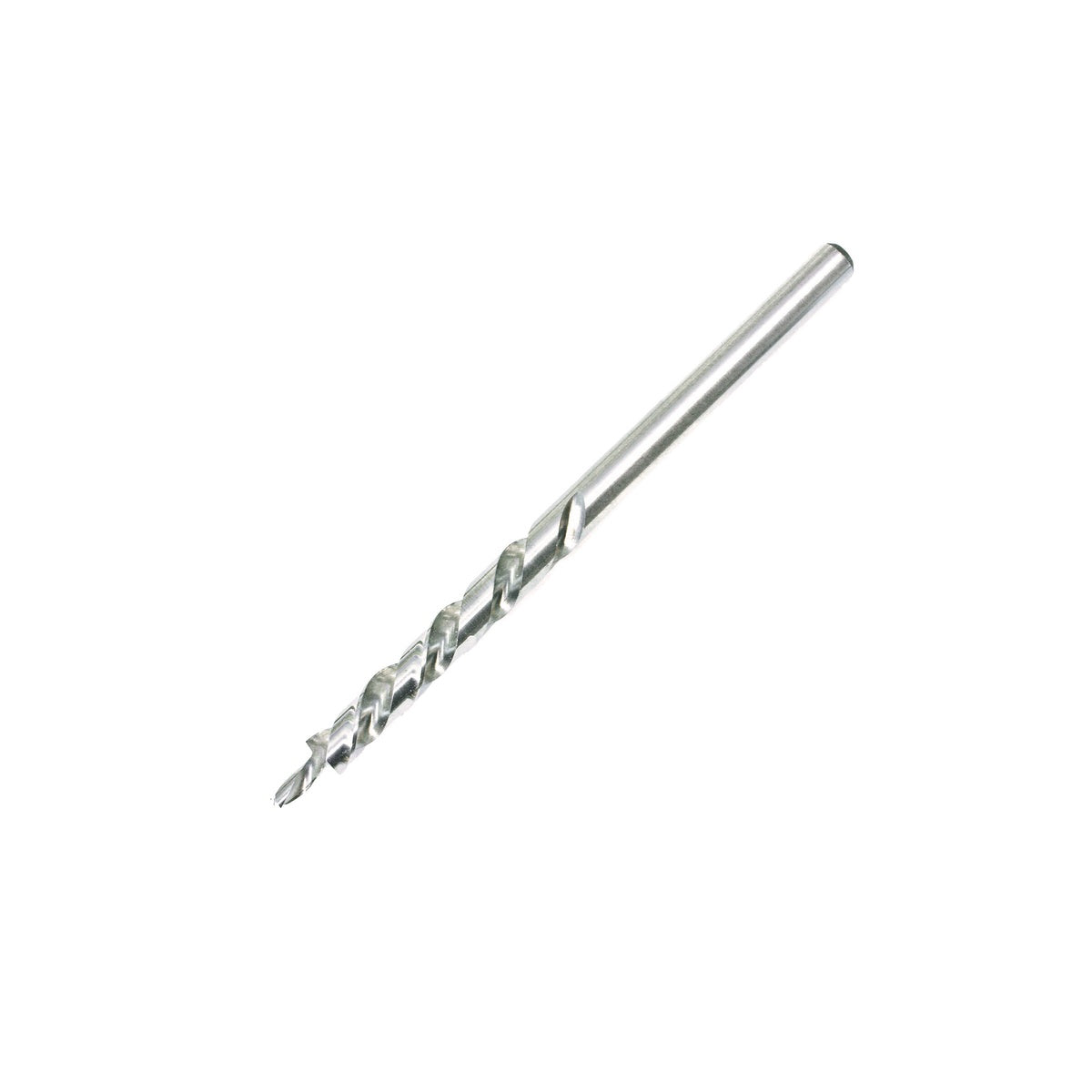

The Kreg LH-DKDB Left-Hand Stepped Drill Bit is a dedicated replacement stepped drill bit for Kreg commercial pocket-hole equipment. This is a stepped drill bit designed for drilling pocket holes and pilot holes in a single operation on the Kreg DK3100 Pocket-Hole Machine. Model Number: LH-DKDB. If you run a DK3100 in a production setting, this is the correct bit for the left-hand center spindle application and it is built to keep that machine cutting the way it should.
What makes this bit matter is not just that it fits, but that it is engineered for the exact machine and drilling motion it was designed around. Kreg calls out an exclusive left-hand thread for the center spindle of the DK3100 only, which means this is not a universal pocket-hole drill bit and it is not meant to be swapped into standard Kreg jigs or other pocket-hole machines. That exclusivity is important because the wrong bit can create poor cutting performance, bad fit, or downtime that has no business showing up in a shop that depends on repeatable joinery.
The cobalt-steel construction is the right call for a bit that is expected to live in a commercial machine. On a production tool, durability is not a nice extra. It is the difference between staying on schedule and stopping to deal with worn tooling. Kreg also uses a one-piece design here, and that matters in practical terms because it helps eliminate clogging and keeps chips moving instead of packing up around a replaceable center section. The result is a smoother drilling stroke and faster drilling compared to bits that use a separate center drill arrangement.
Because this is a stepped drill bit, it handles the pocket-hole cut and the pilot hole in one process. That is exactly what you want in a dedicated pocket-hole setup: fewer steps, more consistency, and less room for setup error. For shops building cabinet parts, face frames, or repeated wood joinery components on a DK3100, that one-pass cutting action helps maintain throughput without giving up the geometry the machine was designed to produce.
From a design standpoint, this is a purpose-built machine accessory, not a general drill bit trying to cover too many jobs. The straight shank, spiral flute, and step point all support its intended role, but the key detail is still fitment. Kreg is very clear that it works with the DK3100 only and does not work with standard Kreg jigs or other Kreg pocket-hole machines. If your shop uses more than one pocket-hole platform, that is the first thing to check before ordering.
The Kreg LH-DKDB Left-Hand Stepped Drill Bit is best for woodworkers, cabinet shops, and production environments already running the DK3100 platform. If you need a replacement bit that matches the machine and keeps drilling smooth in day-to-day use, this is the right part. If you are using a handheld jig or any non-DK3100 setup, skip it and buy the bit made for that system instead.
Built for Production Pocket-Hole Drilling
This bit is made for one job and that is exactly why it makes sense. In a production pocket-hole machine, correct fit and smooth chip flow matter more than broad compatibility.
- Exclusive left-hand thread for the center spindle of the Kreg DK3100 only
- One-piece design helps reduce clogging and keeps drilling smoother and faster
- Stepped geometry drills the pocket hole and pilot hole in one process
Key Specifications
| Material | Cobalt steel |
|---|---|
| Bit Type | Left-hand stepped drill bit |
| Shank Type | Straight |
| Flute Type | Spiral |
| Point Style | Step point |
| Cutting Angle | 135 degrees |
| Piece Count | 1 |
| Overall Size | 0.5 x 1.5 x 9.3 in |
Compatibility
Built For
Pro Tip
If your shop runs more than one Kreg pocket-hole setup, label this bit for the DK3100 center spindle only. This left-hand stepped drill bit is machine-specific, so keeping it separated from standard jig bits prevents fitment mistakes and wasted downtime.
Warranty & Support
Tool Nut’s Take
Why the Kreg LH-DKDB Left-Hand Stepped Drill Bit Matters
This is the kind of part you buy when you want your DK3100 running right, not sort of close.
- Who it’s for: Shops and woodworkers using the Kreg DK3100 for repeated pocket-hole joinery work.
- Why it stands out: It is purpose-built for the DK3100 center spindle, made from cobalt steel, and uses a one-piece design that helps keep drilling smoother and faster.
- Worth knowing: This is not a universal pocket-hole bit. If you do not own a DK3100, this is almost certainly the wrong bit for your setup.
Common Questions
- Will this fit standard Kreg pocket-hole jigs? No. Kreg states this bit does not work with standard Kreg jigs or other Kreg pocket-hole machines.
- What machine is this bit made for? It is designed for exclusive use with the Kreg DK3100 Pocket-Hole Machine.
- What is the advantage of the one-piece design? The one-piece construction helps eliminate clogging and provides a smoother, faster drilling stroke than bits with replaceable center drills.
- What material is the bit made from? It is made from heavy-duty cobalt steel.
