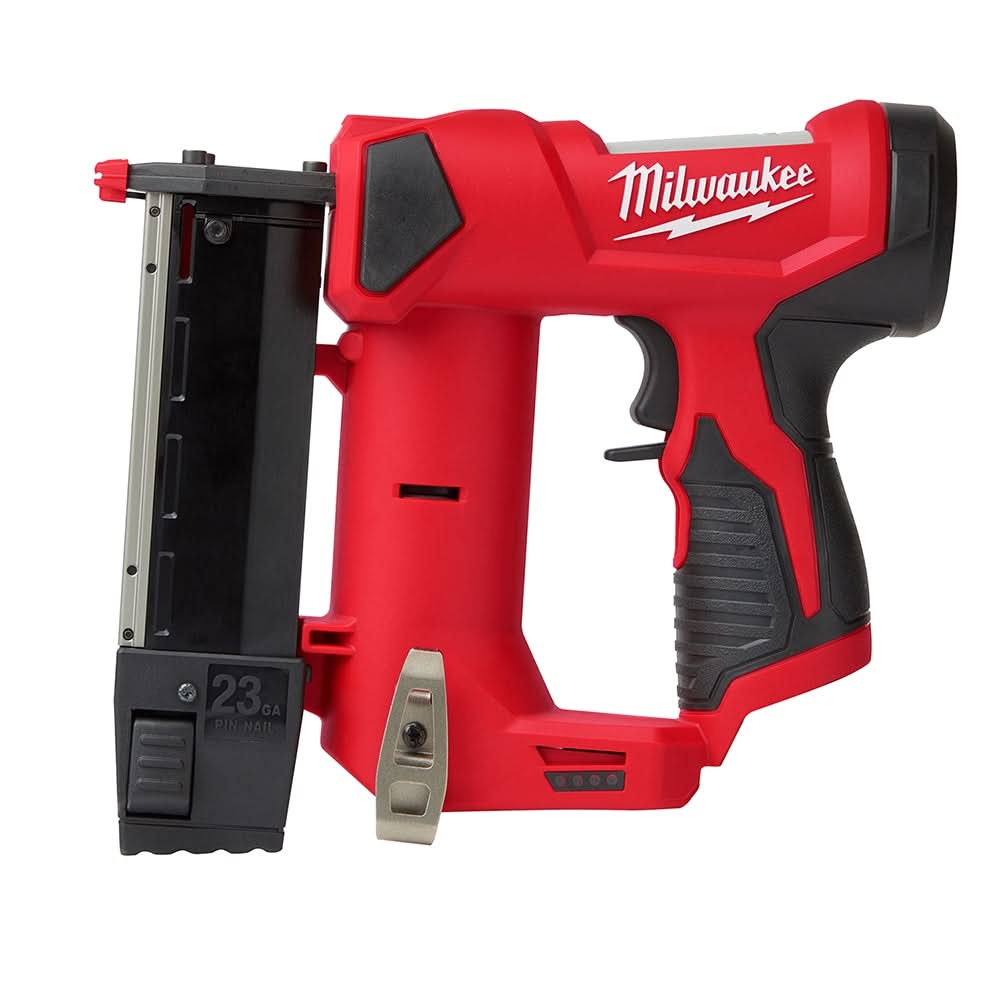

Milwaukee 2540-20 M12 Cordless 23-Gauge Pin Nailer, Tool Only

The Milwaukee 2540-20 M12 23 Gauge Pin Nailer is a cordless finishing nailer built for clean, low-visibility fastening in trim and detail work. This is a 23 gauge pin nailer designed for delicate trim fastening, punch list work, and finish carpentry. Model Number 2540-20. If you install shoe molding, small casing, decorative trim, thin returns, or other pieces where a larger fastener would split the material or leave a bigger mark, this is the tool you reach for.

What separates this nailer from a pneumatic setup is simple: you get the freedom of cordless operation without giving up the clean finish pin nailers are known for. Milwaukee uses a nitrogen air spring mechanism so the tool can consistently sink 23 gauge headless pin nails into hard or soft wood while leaving small nail holes. On the job, that means less touch-up, less setup, and less time dragging a hose through a finished space.

The size is a big deal here. At just 8.7 inches long, 7.7 inches high, and 3.3 pounds, the Milwaukee 2540-20 M12 23 Gauge Pin Nailer is built to get into cabinet interiors, tight corners, and awkward trim locations where a bulkier nail gun becomes annoying fast. That compact form matters most for remodelers, punch-out crews, and finish carpenters working inside already-finished homes where mobility and control count as much as raw driving power.

Milwaukee also got the control features right for finish work. The double-action trigger supports sequential driving, which helps when you need to place each pin exactly where it belongs. The tool-free drive depth adjustment lets you fine-tune for different materials instead of guessing and hoping the next shot lands right. Add in the non-marring precision point tip, and you have a setup that is better suited to delicate trim pieces where surface damage is not acceptable.

Jobsite practicality is where this cordless pin nailer earns its keep. The dry-fire lockout mechanism helps prevent misfires and protects the workpiece when the magazine runs low. A magazine reload indicator gives you a heads-up before you run empty. The integrated LED light helps when you are pinning in shadowed corners, under cabinets, or inside built-ins. Milwaukee also includes (2) interchangeable non-marring precision point tips and a reversible belt clip so the tool is easier to carry between cuts and installs.

For battery platform users, this tool makes even more sense. It fits all Milwaukee M12 batteries, so existing M12 users can drop it right into the same system they already use for drills, installation tools, lights, and service tools. Runtime is strong for this class too, with up to 750 pin nails per charge when paired with an M12 REDLITHIUM CP1.5 battery. Since this is the bare tool version, it is best for buyers who already own M12 packs and chargers.

The fastener range is exactly where a micro pinner should be useful: it drives 23 gauge headless pin nails from 1/2 inch to 1-3/8 inch. That covers a wide range of light fastening tasks where you want holding power without a visible fastener head. It is not the tool for structural fastening or heavy trim assembly, but that is not the point of a 23 gauge pin nailer. Its job is precision fastening with minimal cleanup, and that is where this one belongs.

Who should buy it? Finish carpenters, cabinet installers, remodelers, and serious DIY users who do detail work often enough to appreciate a dedicated cordless pinner. If you already run M12 and want a clean, hose-free solution for fastening thin trim and small moldings, the Milwaukee 2540-20 M12 23 Gauge Pin Nailer is a smart buy. If you need more holding power for heavier casing or base, step up to a larger finish nailer. But for clean pinning work, this tool is built for exactly that lane.

Milwaukee 2540-20 M12 23 Gauge Pin Nailer Gets the Small Stuff Right

This is the kind of cordless pinner that makes perfect sense for trim guys and remodelers who are tired of dragging a hose around finished spaces.

• Who it’s for: Finish carpenters, cabinet installers, remodelers, and M12 users doing detail fastening where a larger finish nailer is overkill.
• Why it stands out: It is compact, genuinely jobsite-friendly, and has the right control features for clean pin placement, including depth adjustment, dry-fire lockout, and non-marring precision tips.
• Worth knowing: This is a bare tool, so you need an M12 battery and charger. It is also a true 23 gauge pin nailer, which is great for low-visibility fastening but not the right choice when you need heavier holding power.

• What fasteners does it use? It drives 23 gauge headless pin nails in lengths from 1/2 inch to 1-3/8 inch.
• Does it require a hose or gas cartridge? No. This is a cordless pin nailer and does not use a pneumatic hose or gas cartridge.
• Which battery platform does it fit? It fits all Milwaukee M12 batteries.
• How much does the tool weigh? The nailer weighs 3.3 pounds.
